Spring Code

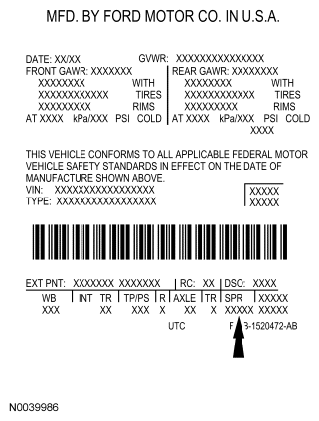

Fig 1: Locating Spring Codes

Courtesy of FORD MOTOR CO.

Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.

Front Springs

• JJ - 9L84-5310-J (coil)
• KK - 9L84-5310-K (coil)
• LL - 9L84-5310-L (coil)
• MM - 9L84-5310-M (coil)
• VV - 9M64-5310-B (coil)
• 44 - 9L84-5310-H (coil)

Rear Springs

• DD - 9L84-5726-D (leaf)
• EE - 9L84-5726-E (leaf)
• FF - 9L84-5726-F (leaf)
• GG - 9M64-5726-D (leaf)
• HH - 9M64-5726-C (leaf)
