Driver Air Bag Module: Installation

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connect the horn switch electrical connector.

Fig 1: Locating Horn Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the driver air bag module electrical connectors.

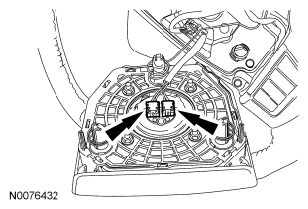

Fig 2: Locating Driver Air Bag Module Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the driver air bag module to the steering wheel.
- Firmly press the driver air bag module to engage the 3 driver air bag module wire clips to the steering wheel.
Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
