Front Impact Severity Sensor: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

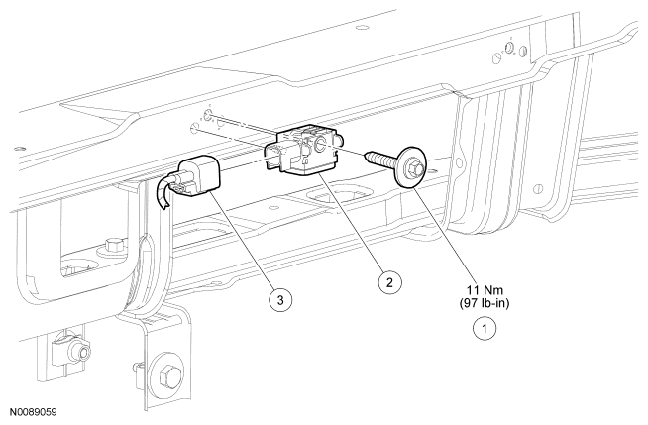

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W712191	Front impact severity sensor bolt
2	14B006	Front impact severity sensor
3	-	Front impact severity sensor electrical connector (part of 14290)
