Passenger Air Bag Module: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

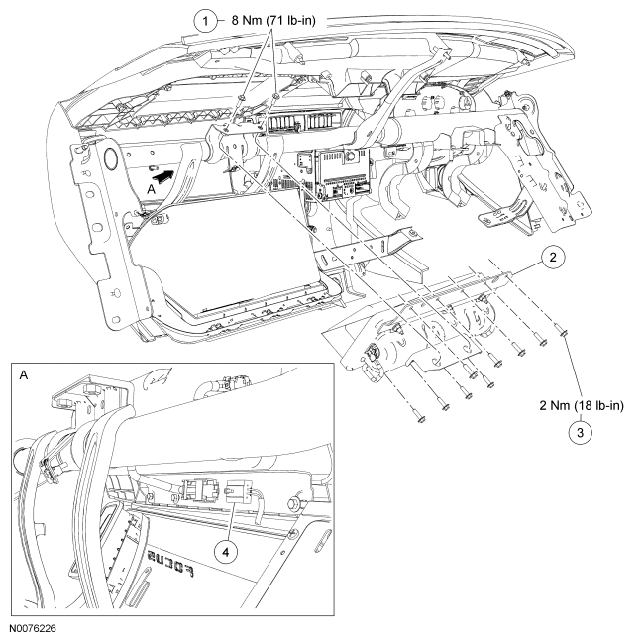

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W713417	Passenger air bag module bolts (2 required)
2	044A74	Passenger air bag module
3	W707281	Passenger air bag module screw (9 required)
4	-	Passenger air bag module electrical connector (part of 14401)
