Special Tool(s)
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

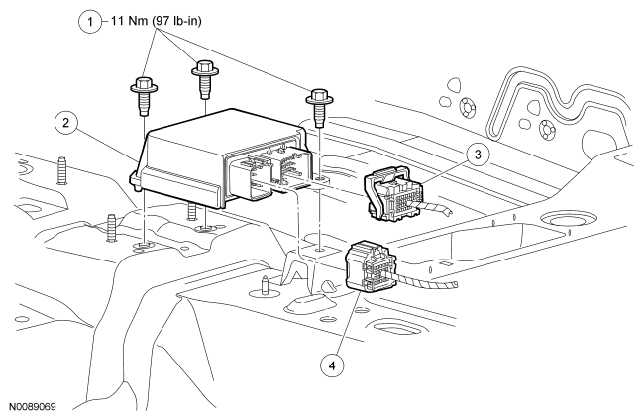

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W704265 | Restraints Control Module (RCM) bolts (3 required) |
| 2 | 14B321 | RCM |
| 3 | - | Large RCM electrical connector (part of 14A005) |
| 4 | - | Small RCM electrical connector (part of 14401) |
