Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

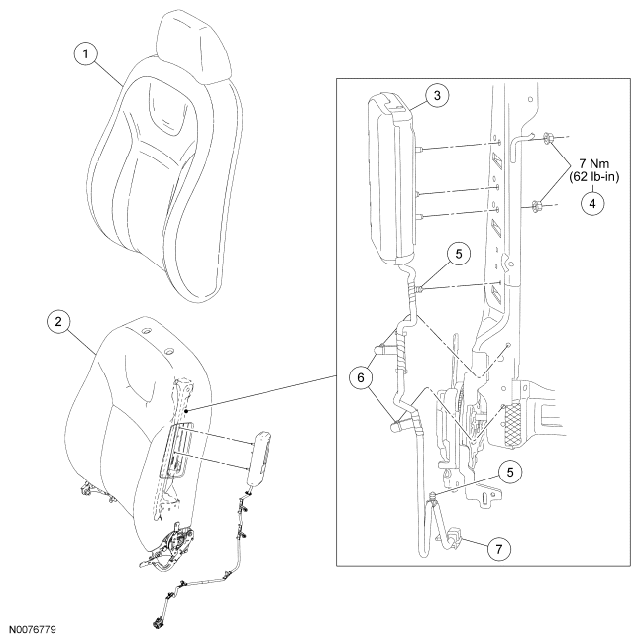

Driver seat shown in illustration, passenger seat similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 5464416 | Seat backrest trim cover |
| 2 | 5464810 | Seat backrest foam |
| 3 | 54611D10 | Side air bag module |
| 4 | W520201 | Side air bag module nuts (2 required) |
| 5 | - | Wiring harness retainers (part of 54611D10) |
| 6 | - | Wiring harness retainers (part of 54611D10) |
| 7 | - | Wiring harness electrical connector (part of 54611D10) |
