Side Air Curtain Module: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Two-door shown in illustration, 4-door similar.

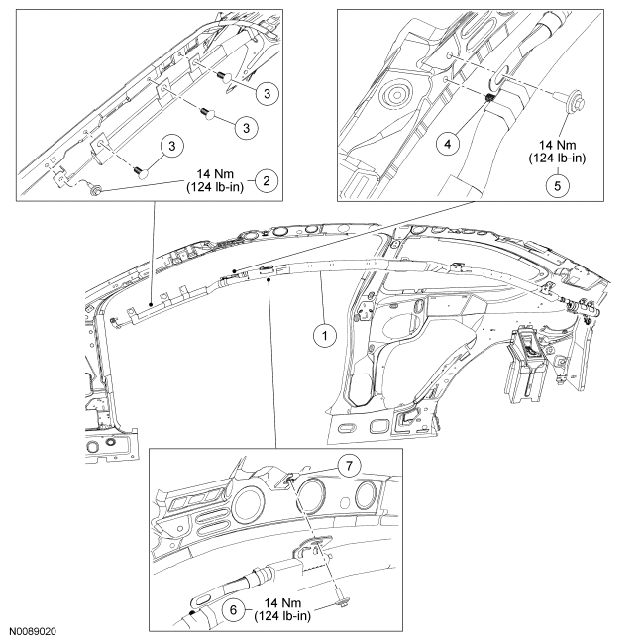

Fig 1: Side Air Curtain Module Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	042D94	Side air curtain module
2	-	Side air curtain module front tether bracket bolt (part of 042D94)
3	-	Side air curtain module A-pillar trim bracket push-pin retainers (3 required) (part of 042D94)
4	-	Side air curtain module push-pin retainer (part of 042D94)
5	W706681	Side air curtain module A-pillar trim bracket bolt
6	W706681	Side air curtain module bolt (rear of A-pillar) (2-door vehicles)
7	W709759	Side air curtain module J-nut (rear of A-pillar) (2-door vehicles)

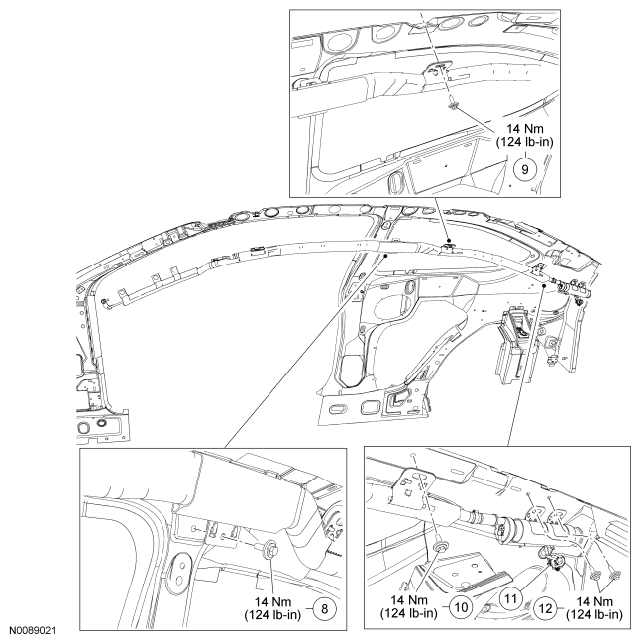

Fig 2: Side Air Curtain Module Replacement Components With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
8	W706681	Side air curtain module middle bolt
9	W706681	Side air curtain module middle-rear bolt
10	-	Side air curtain module rear bolt
11	-	Side air curtain module electrical connector (part of 042D94)
12	W706681	Side air curtain module rear bracket bolts
