Rain Sensor Module Connector - C914
Rain Sensor Module Connector - C914

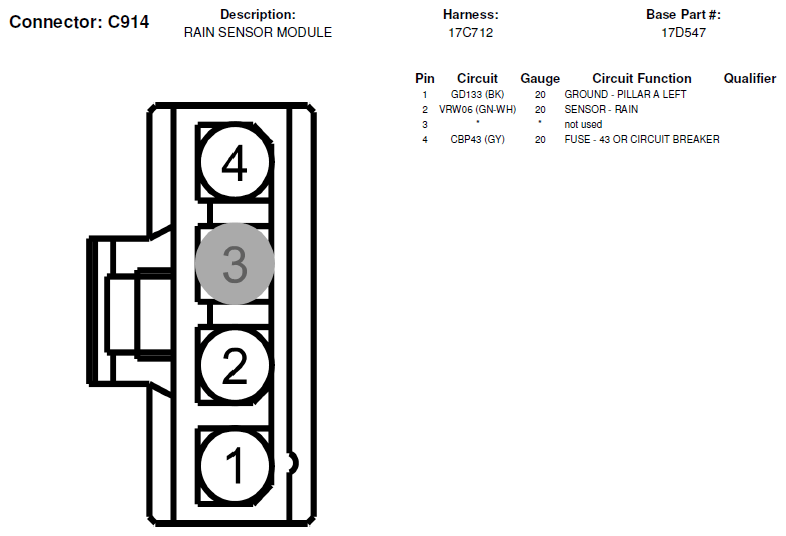

Fig 1: Rain Sensor Module Connector End View (C914)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
