Ambient Lighting Module: Notes

WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

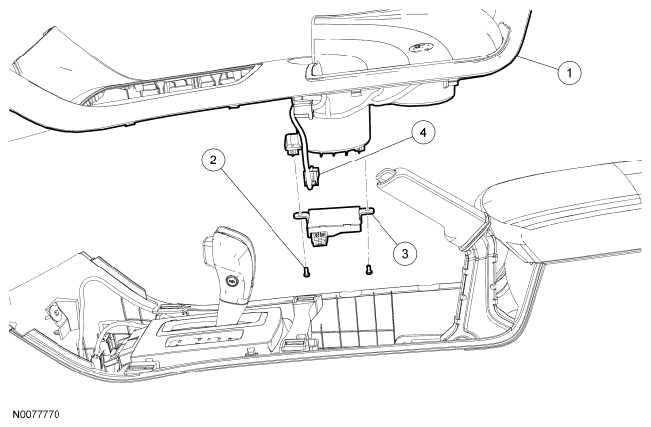

Fig 1: Identifying Ambient Lighting Module Components

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	04567	Floor console finish panel
2	W701679	Ambient lighting module screws (2 required)
3	13C788	Ambient lighting module
4	-	Ambient lighting module electrical connector (part of 14D375)
