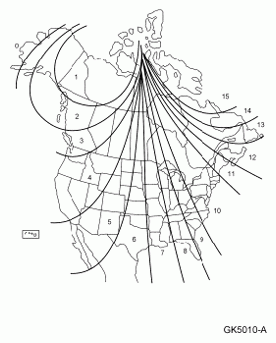

Compass Calibration Zone Map
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to the compass calibration zone map to select the correct compass zone setting for the geographic location of the vehicle.
- With the key in the ON position, press and hold the Front Controls Interface Module (FCIM) preset buttons 7 and 9 for approximately 5 seconds until the compass display shows the current zone setting (ZONE XX). Release the 7 and 9 buttons.
-
NOTE: Approximately 5 seconds after the buttons have been released, the compass display exits the zone setting mode.
Before the zone setting mode turns off, momentarily press and release the FCIM preset buttons 7 and 9 to increase the zone increment by one. Set the zone display number to match the vehicle geographical location that is shown on the compass calibration zone map.
- To exit the zone setting mode, release all FCIM buttons for 5 seconds.
