Homelink Module Connector - C928
Homelink Module Connector - C928

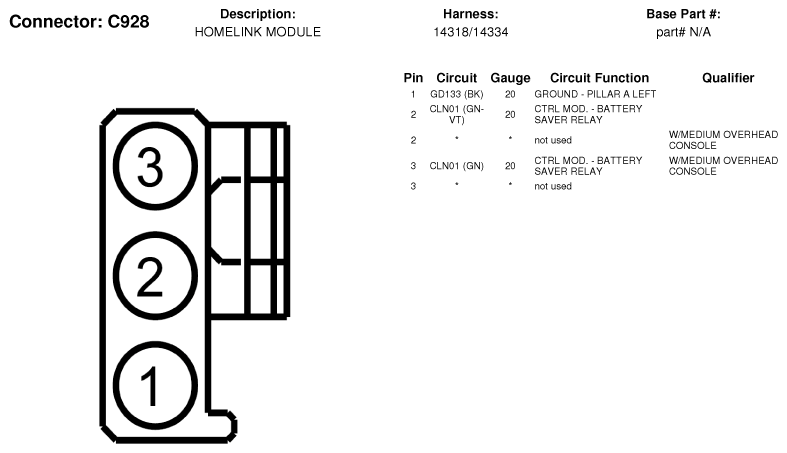

Fig 1: Homelink Module Connector End View (C928)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
