Instrument Panel - Exploded View

NOTE: Explorer/Explorer Sport Trac shown in illustration, Mountaineer similar.

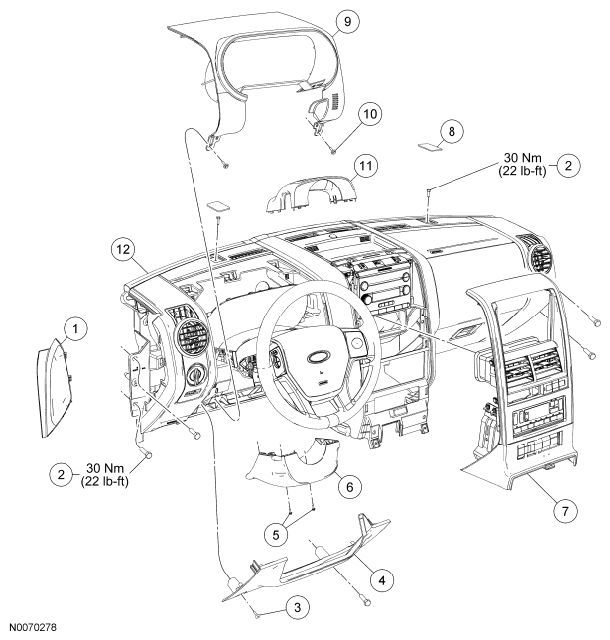

Fig 1: Exploded View Of Instrument Panel Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	04480 RH/04481 LH	Instrument panel side finish panel (2 required)
2	W706246	Instrument panel bolts (6 required)
3	W707628	Steering column opening trim panel screw (2 required)
4	04459	Steering column opening trim panel
5	-	Steering column cover screws (2 required)
6	3530	Lower steering column cover
7	04302	Instrument panel center finish panel
8	044F58	Instrument panel upper cowl bolt cover (2 required)
9	044D70	Instrument cluster finish panel
10	W705314	Instrument cluster finish panel screw (2 required)
11	3530	Upper steering column cover
12	04320	Instrument panel
