Steering Wheel
›
Notes
Steering Wheel: Notes

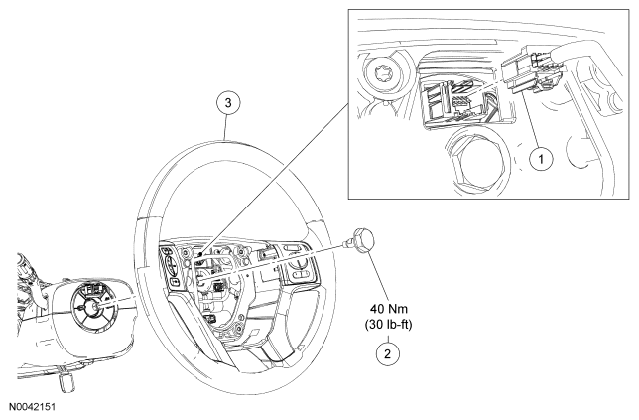

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART
Item
Part Number
Description
1
-
Steering wheel switches electrical connector (part of 9C888)
2
W705985
Steering wheel bolt
3
3600
Steering wheel
