Ford
›
2010
›
Explorer 4.0 E, AWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission - Automatic Transaxle/Transmission - External Controls
›
Removal And Installation
›
Transmission Control (TC) Switch
›
Notes
Transmission Control (TC) Switch: Notes

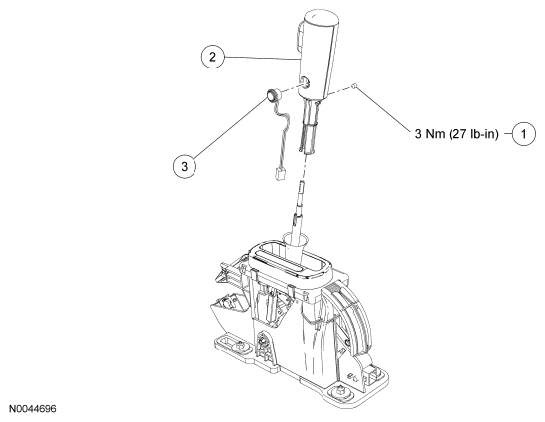

Fig 1: Transmission Control Switch, Selector Lever Knob And Selector Lever Knob Set Screws With Torque Specifications
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION
Item
Part Number
Description
1
-
Selector lever knob set screw
2
7213
Selector lever knob
3
7G550
Transmission Control Switch (TCS)
