Removal and Installation

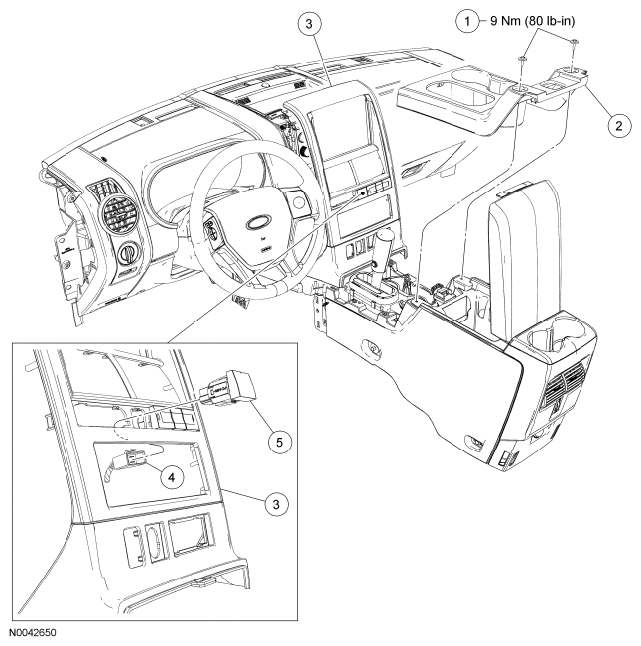

Fig 1: Exploded View Of Stability/Traction Control Switch With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION TABLE

Item	Part Number	Description
1	W705796	Floor console center finish panel screws
2	78045B44	Floor console center finish panel
3	7804302	Instrument panel center finish panel
4	-	Stability/traction control switch electrical connector (part of 14401)
5	14B079	Stability/traction control switch

Remove the 2 floor console center finish panel screws and the floor console center finish panel.
- To install, tighten to 9 Nm (80 lb-in).
Apply the parking brake.
Move the gear selector lever to the D1 position.
Position the instrument panel center finish panel away from the instrument panel.
Disconnect the stability/traction control switch electrical connector and remove the stability/traction control switch from the instrument panel center finish panel.
To install, reverse the removal procedure.
