Ignition Components RH Side

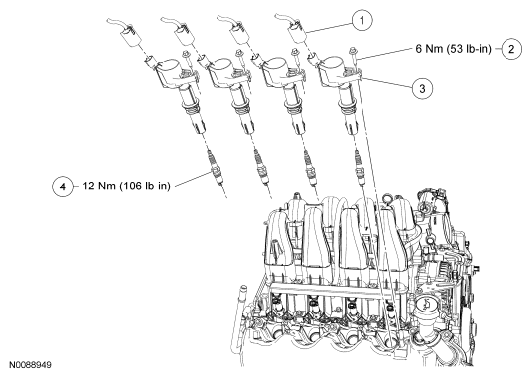

Fig 1: Engine Ignition Replacement Components With Torque Specifications - RH

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (part of 12B637) (4 required)
2	W706175	Ignition coil-on-plug bolt (4 required)
3	12A366	Ignition coil-on-plug (4 required)
4	12405	Spark plug (4 required)
