Front Disc Brake: Notes
WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |
| Penetrating and Lock Lubricant XL-1 (US); CXC-51-A (Canada) |
- |

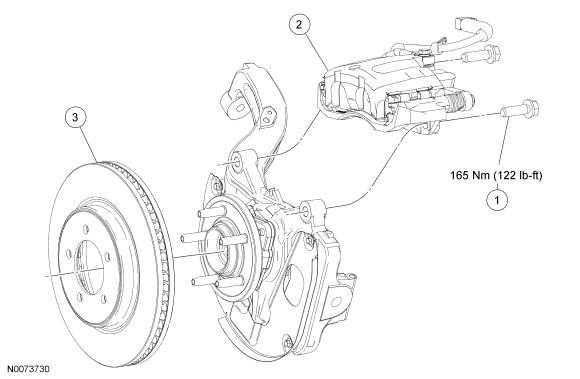

| Item | Part Number | Description |
|---|---|---|
| 1 | 2027 | Brake caliper anchor plate bolt (2 required) |
| 2 | - | Brake caliper, brake pads and anchor plate assembly |
| 3 | 1125 | Brake disc |
