4X4 Control Module

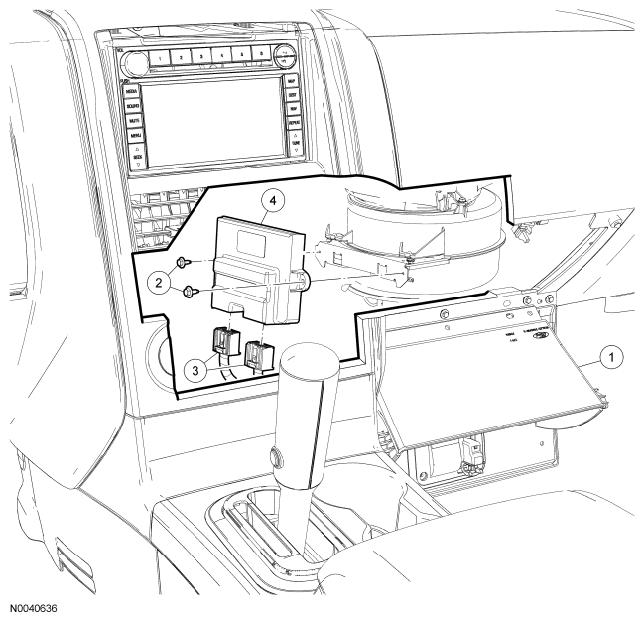

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Glove compartment |
| 2 | W705314 | Screws |
| 3 | - | Connectors |
| 4 | 7E453 | 4X4 control module |
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Open the glove compartment, press in on sides and lower it to gain access.
- Remove the 2 screws.
- Disconnect the electrical connectors.
- Remove the 4X4 control module.
- To install, reverse the removal procedure.
