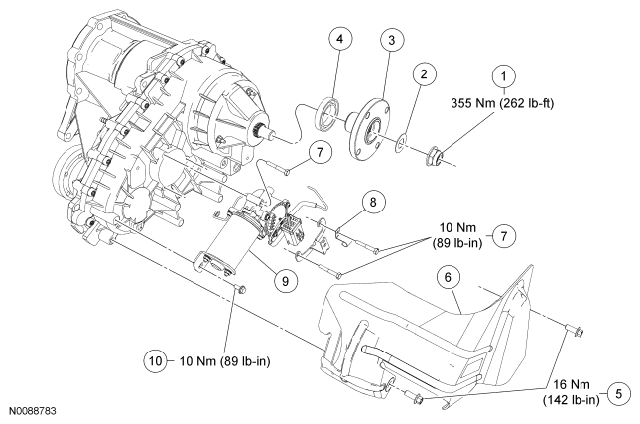

Transfer Case - Exploded View
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7045 | Rear output shaft flange nut |
| 2 | 7B368 | Rear output shaft flange washer |
| 3 | 7B214 | Rear output shaft flange |
| 4 | 7B215 | Rear output shaft oil seal |
| 5 | 7A443 | Heat shield bolts (3 required) |
| 6 | 7C277 | Heat shield |
| 7 | N800670 | Shift motor bolts (3 required) |
| 8 | 7K470 | J-clip |
| 9 | 7G360 | Transfer case shift motor |
| 10 | N802503 | Transfer case shift motor bolt |
- For additional information, refer to the appropriate procedures.
