Driver Seat Module Connector - C341C
Driver Seat Module Connector - C341C

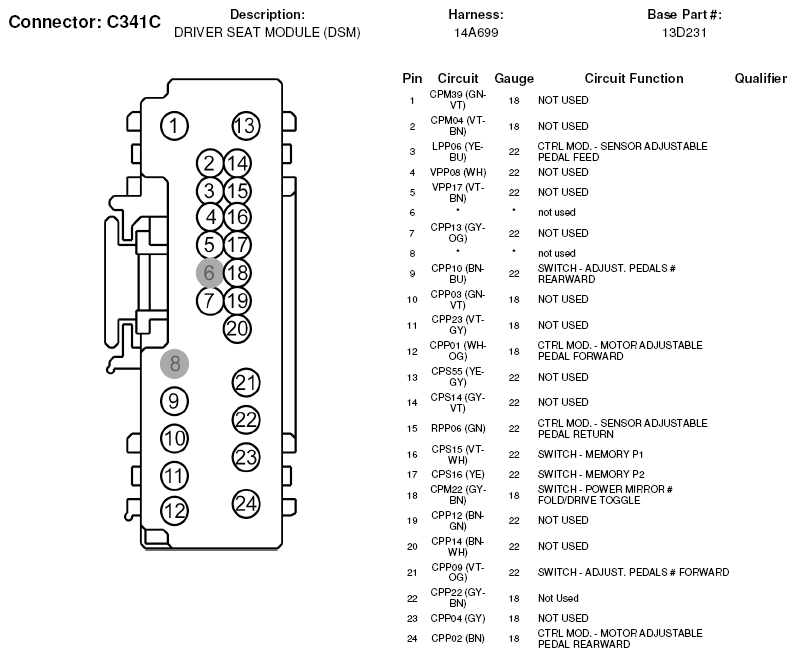

Fig 1: Driver Seat Module Connector End View (C341C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
