Fuel Pump Control Module: Notes

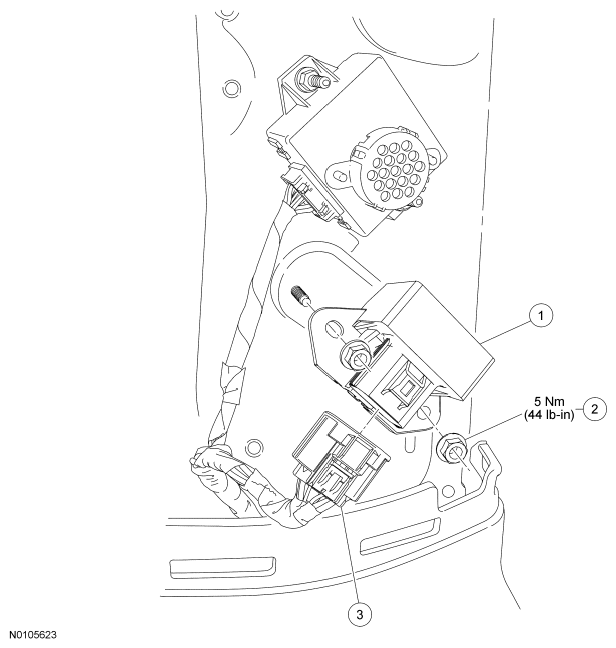

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications
Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART
Item
Part Number
Description
1
9D412
Fuel Pump (FP) control module
2
N805320
FP
control module nut (2 required)
3
14A464
FP
control module electrical connector
