Master window control switch - Sedan: Schematic

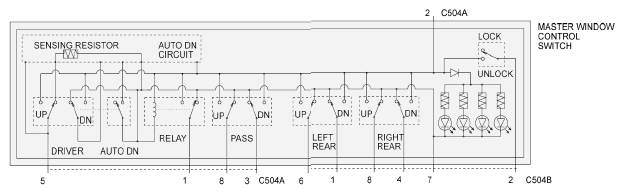

Fig 1: Master Window Control Switch (Sedan) - Schematic
G06357946Courtesy of FORD MOTOR CO.
