Accessory Protocol Interface Module Connector - C2298

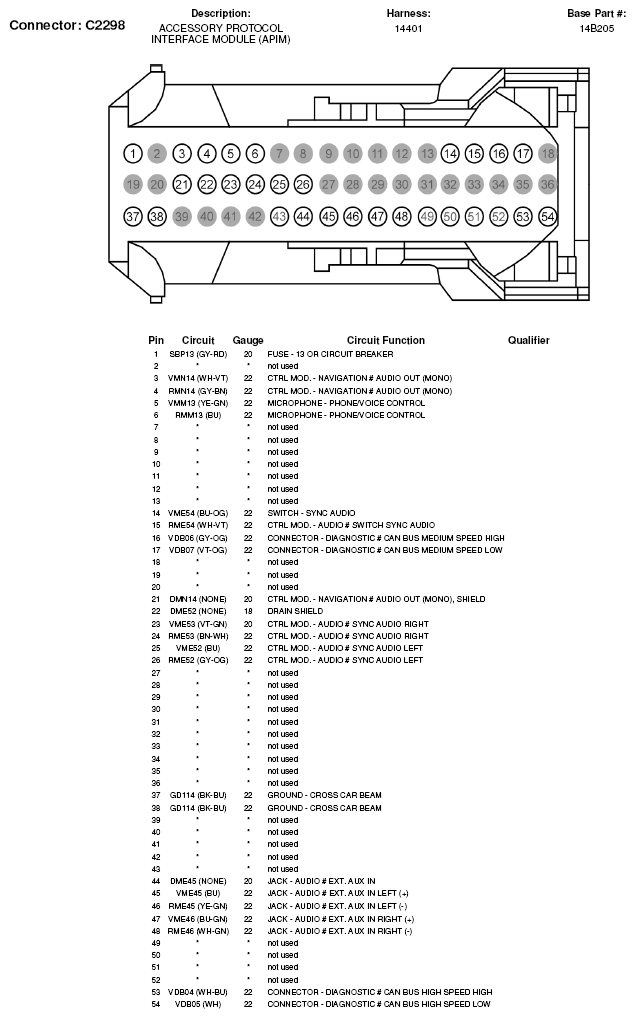

Fig 1: Accessory Protocol Interface Module Connector End View (C2298)
G06352888Courtesy of FORD MOTOR CO.
