Stability Control Sensor Cluster Connector - C3073

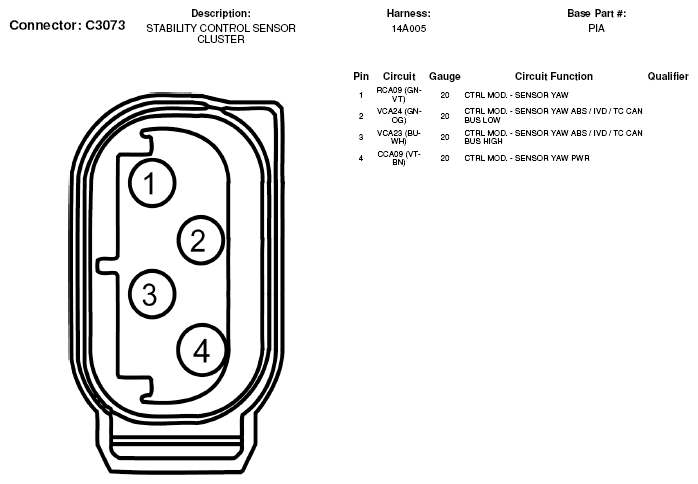

Fig 1: Stability Control Sensor Cluster Connector End View (C3073)
G06352895Courtesy of FORD MOTOR CO.
