Primary Fuel Pump Driver Module Connector - C4335
Primary Fuel Pump Driver Module Connector - C4335

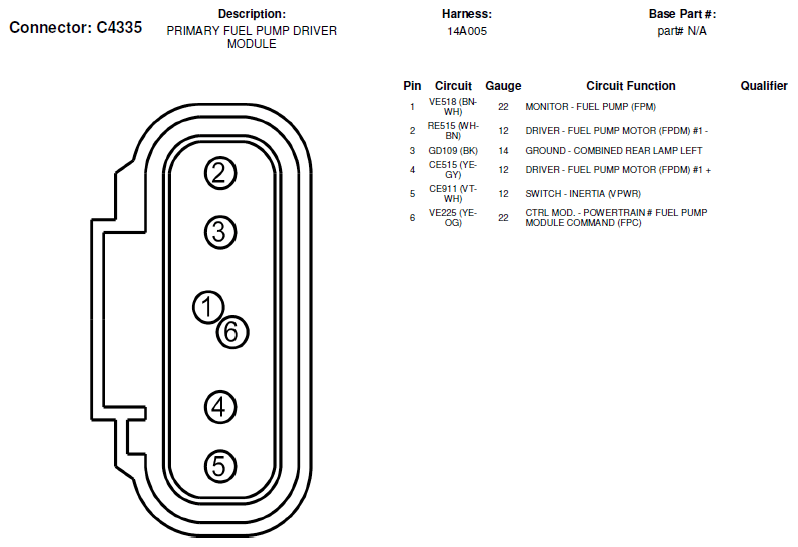

Fig 1: Primary Fuel Pump Driver Module Connector End View (C4335)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
