Accessory Protocol Interface Module Connector - C2383
Accessory Protocol Interface Module Connector - C2383

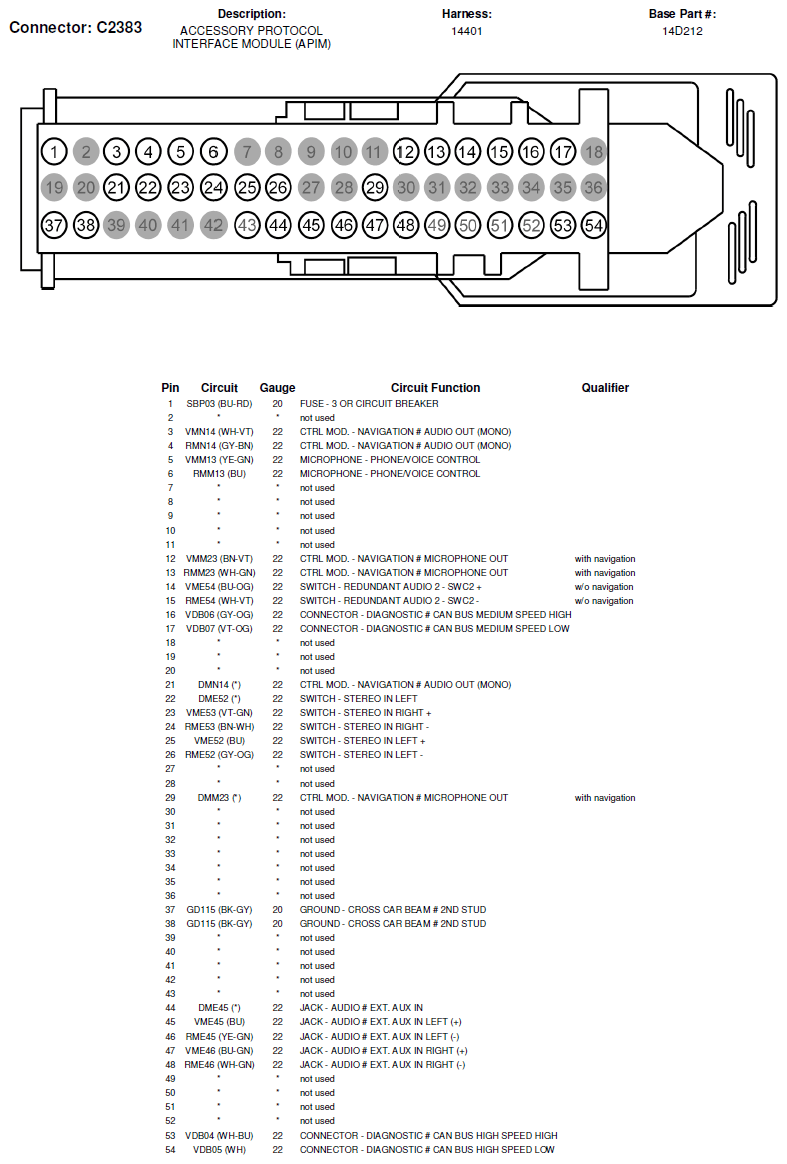

Fig 1: Accessory Protocol Interface Module Connector End View (C2383)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
