Main Control Valve Body: Disassembly

NOTE: The main control valve body separator plate has a bonded gasket. Do not reuse. Discard the plate.

Fig 1: Locating Valve Body Separator Plate

G06395846

Courtesy of FORD MOTOR CO.

Remove and discard the main control valve body separator plate.
Remove the check balls.

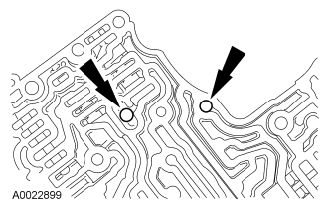

Fig 2: Locating Check Balls
Courtesy of FORD MOTOR CO.

NOTE: Refer to the DISASSEMBLED VIEW .

Disassemble the main control valve body only if cleaning is required.
