Fluid Fill Reference

NOTE: Left side of case shown in illustration.

Fig 1: Identifying Transmission Fluid Pan Drain Plug

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	-	Fluid level
2	7A010	Fluid level tube
3	W704999-S309	Transmission fluid pan drain plug (short hex)
4	7A010	Transmission fluid pan drain plug

Using the scan tool, monitor the Transmission Fluid Temperature (TFT) PID.
Start the vehicle.

NOTE: Engine idle speed is approximately 650 RPM.

Run the engine until the Transmission Fluid Temperature (TFT) is between 27°-49°C (80°-120°F).
Move the selector lever slowly through each gear, stopping in each position and allowing the transmission to engage.

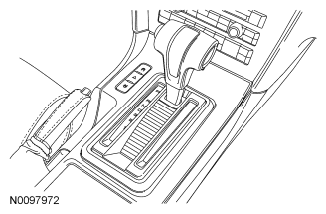

Fig 2: Identifying Transmission Selector Lever
Courtesy of FORD MOTOR CO.
Place the selector lever in the PARK position.
With the engine running, position the vehicle on a hoist and set it as close to level as possible. For additional information, refer to JACKING & LIFTING .
Hold the transmission fluid pan drain plug with a wrench and remove the transmission fluid pan drain tube plug (short hex).

Fig 3: Identifying Small (Center) Fluid Level Indicating Plug
Courtesy of FORD MOTOR CO.
Install the Transmission Fluid Fill Tool into the pan.

Fig 4: Identifying Special Tool
Courtesy of FORD MOTOR CO.

NOTE: Prior to filling the Transporter Fluid Evacuator/Injector with transmission fluid, make sure that the canister is clean.

Fig 5: Identifying Transporter Fluid Evacuator/Injector

Courtesy of FORD MOTOR CO.

Fill the Transporter Fluid Evacuator/Injector with automatic transmission fluid.
Hang the Transporter Fluid Evacuator/Injector under the vehicle. Position it upright and close to the transmission.

Fig 6: Identifying Special Tool
Courtesy of FORD MOTOR CO.
Connect the Transmission Fluid Fill Tool and the Transporter Fluid Evacuator/Injector.
- Connect the open end of the fluid hose from the Transporter Fluid Evacuator/Injector to the Transmission Fluid Fill Tool at the bottom of the transmission fluid pan.

  Fig 7: Connecting Open End Of Fluid Hose
  Courtesy of FORD MOTOR CO.
Apply a maximum of 206.85 kPa (30 psi) to the open end of the vacuum/pressure hose from the Rubber Tip Air Nozzle. Transmission fluid will immediately start flowing out of the Transporter Fluid Evacuator/Injector into the transmission fluid pan.

Fig 8: Applying Air Pressure Of Vacuum/Pressure Hose
Courtesy of FORD MOTOR CO.
Add one pint of transmission fluid into the transmission fluid pan. Stop the process by releasing the air pressure and removing the Rubber Tip Air Nozzle from the end of the hose.
Inspect the transmission fluid level in the Transporter Fluid Evacuator/Injector. If the transmission fluid drains back into the canister, the transmission is full. If no transmission fluid drains back, more transmission fluid will need to be added. Repeat Steps 12 and 13.
Once the transmission is full, place a hand vacuum pump from the Vacuum Pump Kit on the open end of the vacuum/pressure hose of the Transporter Fluid Evacuator/Injector and apply vacuum to the system. This will pull out any extra transmission fluid trapped in the system and direct it into the container.

Fig 9: Installing Vacuum Pump
Courtesy of FORD MOTOR CO.
Allow the transmission fluid to drain. Make sure that the transmission fluid temperature is between 27°-49°C (80°-120°F). When the transmission fluid comes out as a thin stream or drip, the transmission fluid is at the correct level.

Fig 10: Draining Fluid
Courtesy of FORD MOTOR CO.
Reinstall the transmission fluid pan drain tube plug (short hex).
- Tighten to 10 Nm (89 lb-in).

  Fig 11: Identifying Small (Center) Fluid Level Indicating Plug
  Courtesy of FORD MOTOR CO.
Check the operation of the transmission by moving the range selector lever slowly through each gear, stopping in each position and allowing the transmission to engage.
