Main Control Valve Body: Material
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

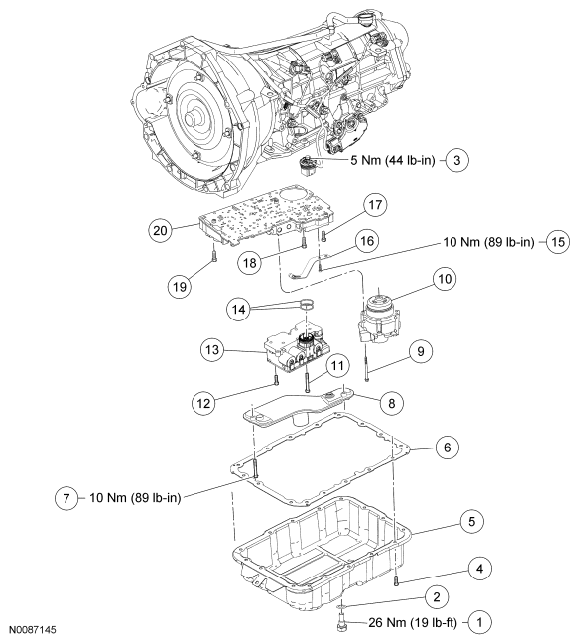

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A010 | Transmission fluid pan drain plug |
| 2 | 6734 | Transmission fluid pan drain plug gasket |
| 3 | - | Transmission vehicle harness connector screw |
| 4 | W500213 | Transmission fluid pan screw (16 required) |
| 5 | 7A194 | Transmission fluid pan |
| 6 | 7A191 | Transmission fluid pan gasket |
| 7 | W705559 | Transmission fluid pan filter screw (2 required) |
| 8 | 7A098 | Transmission fluid pan filter |
| 9 | W702359 | Reverse servo piston-to-case screw (4 required) |
| 10 | 7B193 | Reverse servo assembly |
| 11 | W703189 | Transmission control solenoid body screw (7 required) |
| 12 | W702921 | Transmission control solenoid body screw |
| 13 | 7G391 | Transmission control solenoid body |
| 14 | W705928 | Solenoid body connector O-ring seals |
| 15 | W500100 | Manual valve detent spring screw |
| 16 | 7E332 | Manual valve detent spring |
| 17 | W500102 | Main control valve body screw (18 required) |
| 18 | W702791 | Main control valve body screw |
| 19 | W706672 | Main control valve body screw |
| 20 | 7A100 | Lower main control valve body assembly |
