Occupant Classification Sensor Connector - C3159

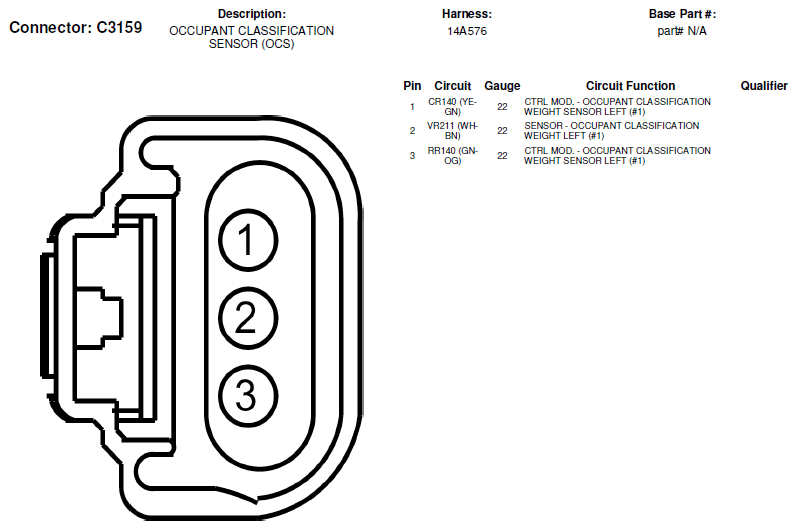

Fig 1: Occupant Classification Sensor Connector End View (C3159)
G06374845Courtesy of FORD MOTOR CO.
