Steering Column: Notes
NOTE:

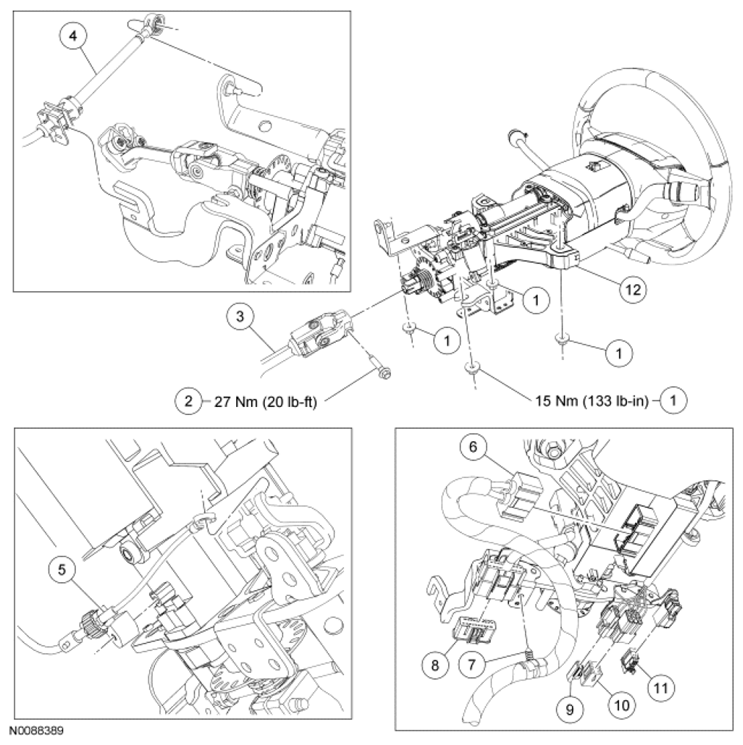

Steering column with automatic transmission shown, steering column with manual transmission similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | N806423 | Steering column support bracket nuts (4 required) |
| 2 | N808684 | Upper steering column shaft-to-steering column bolt |
| 3 | 3E751 | Upper steering column shaft |
| 4 | 7E395 | Selector lever cable and bracket |
| 5 | 130101 | Selector lever indicator cable |
| 6 | - | Ignition switch electrical connector (part of 14401) |
| 7 | - | Wiring harness retainer (part of 14401) |
| 8 | - | Multifunction switch electrical connector (part of 14A320) |
| 9 | - | Clockspring electrical connector (part of 14401) |
| 10 | - | Clockspring electrical connector (part of 14401) |
| 11 | - | Brake shift interlock solenoid electrical connector (part of 14401) |
| 12 | 3C529 | Steering column |

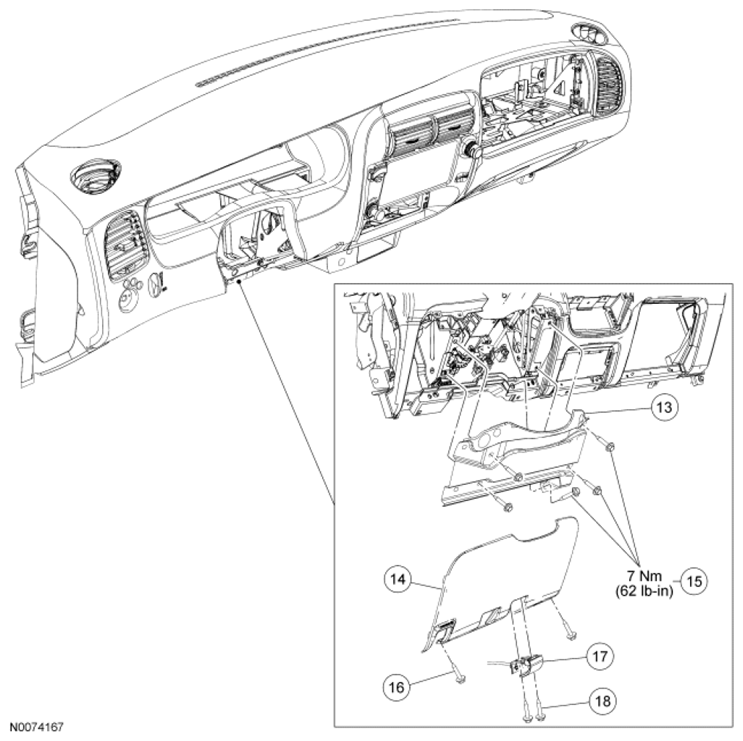

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 13 | 017A28 | Steering column opening reinforcement |
| 14 | 04459 | Steering column opening trim panel |
| 15 | W705962 | Steering column opening reinforcement bolts (5 required) |
| 16 | W705314 | Steering column opening trim panel screw (2 required) |
| 17 | 16B975 | Hood release handle |
| 18 | N804693 | Hood release handle bolt (2 required) |
