Fuel Pump Control Module: Notes

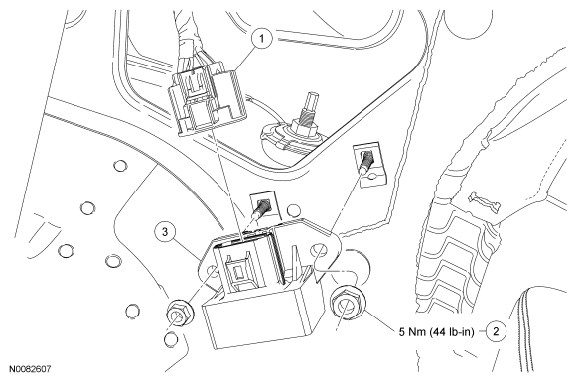

Fig 1: Fuel Pump Control Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	Fuel Pump (FP) control module electrical connector
2	W701014	FP  control module nut (2 required)
3	9D412	FP  control module
