EMTC HVAC Module Connector - C2357
EMTC HVAC Module Connector - C2357

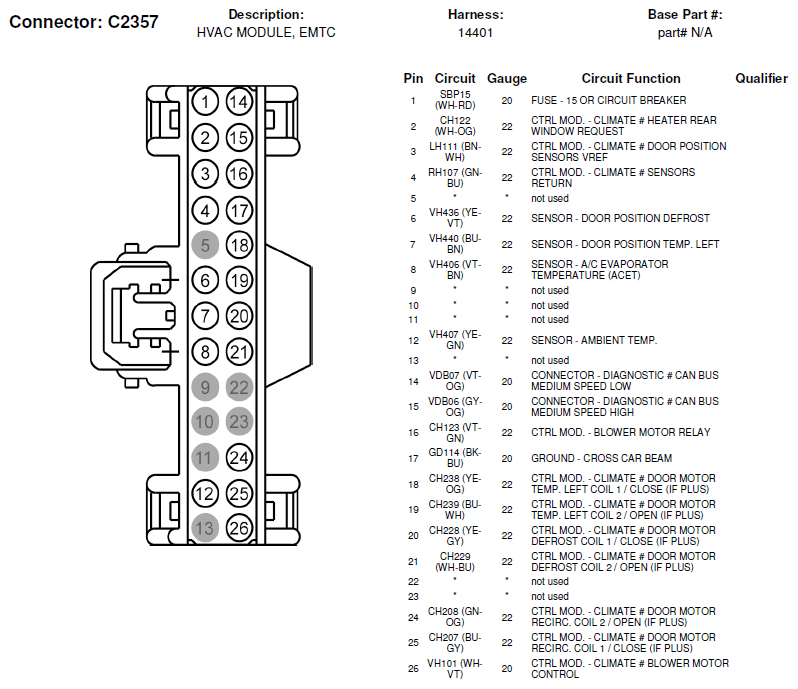

Fig 1: EMTC HVAC Module Connector End View (C2357)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
