Electronic Throttle Control Position Sensor Connector - C189
Electronic Throttle Control Position Sensor Connector - C189

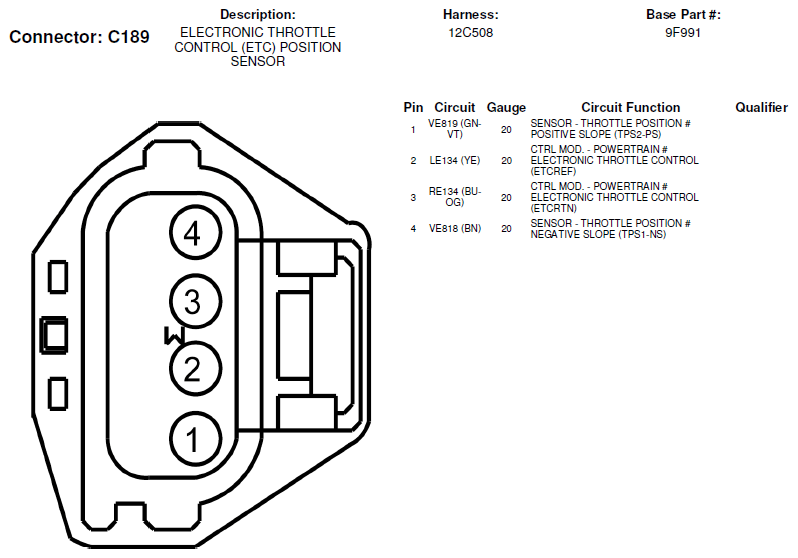

Fig 1: Electronic Throttle Control Position Sensor Connector End View (C189)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
