Intake Air Temperature Sensor Connector - C129

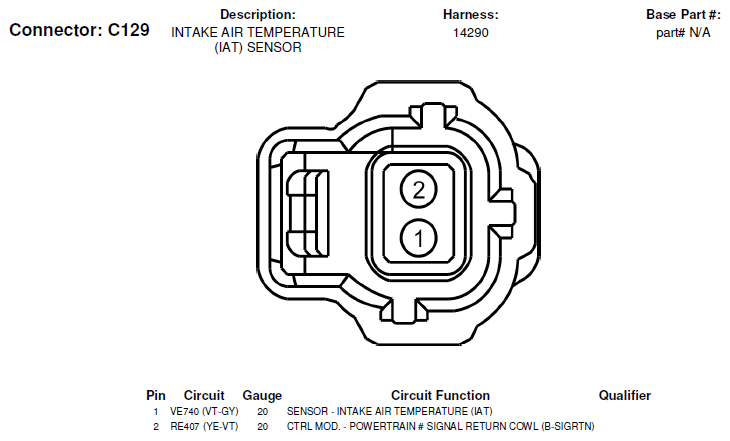

Fig 1: Intake Air Temperature Sensor Connector End View (C129)
G06413701Courtesy of FORD MOTOR CO.
