Sunshade Module Connector - C3340
Sunshade Module Connector - C3340

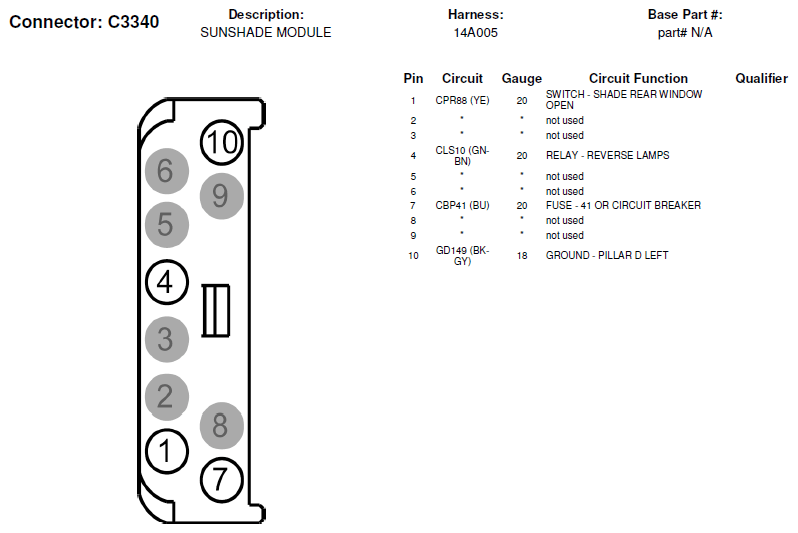

Fig 1: Sunshade Module Connector End View (C3340)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
