Description And Operation
›
Hydraulic System
›
Main Control
›
Main Control Components
Main Control Components

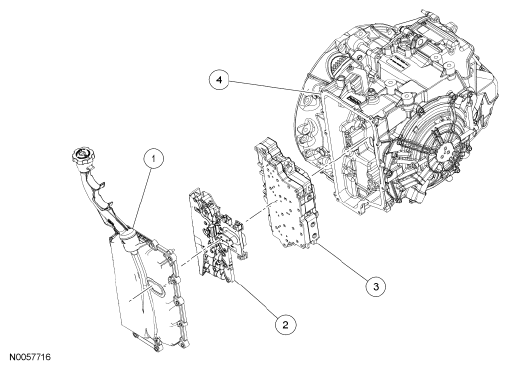

Fig 1: Identifying Main Control Components
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION
Item
Part Number
Description
1
7G004
Main control cover assembly
2
7Z369
Solenoid body
3
7A100
Main control valve body
4
7005
Transaxle case
