Main Control Valve Body: Notes

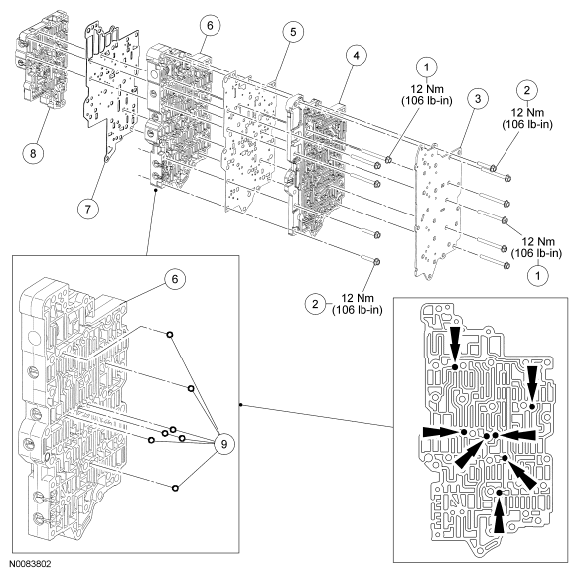

Fig 1: Main Control Valve Body Replacement Components With Torque Specifications
G06260473Courtesy of FORD MOTOR CO.
