Wheel Speed Sensor - Front: Notes

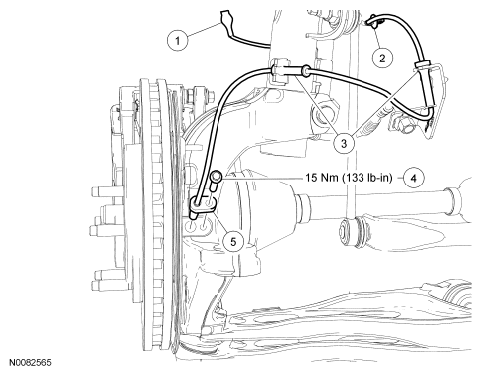

Fig 1: Identifying Wheel Speed Sensor Electrical Connector, Wheel Speed Sensor Harness Retainer

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 2C204)
2	-	Wheel speed sensor harness pin-type retainer (part of 2C204)
3	-	Wheel speed sensor harness retainers (part of 2C204) (2 required)
4	W505255	Wheel speed sensor bolt
5	2C204	Wheel speed sensor
