Front Controls Interface Module Connector - C2402

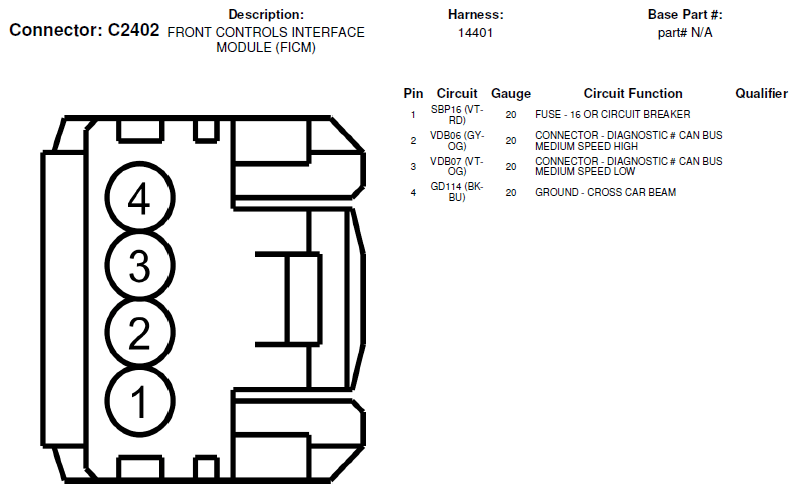

Fig 1: Front Controls Interface Module Connector End View (C2402)
G06413967Courtesy of FORD MOTOR CO.
