Accessory Protocol Interface Module Connector - C3342

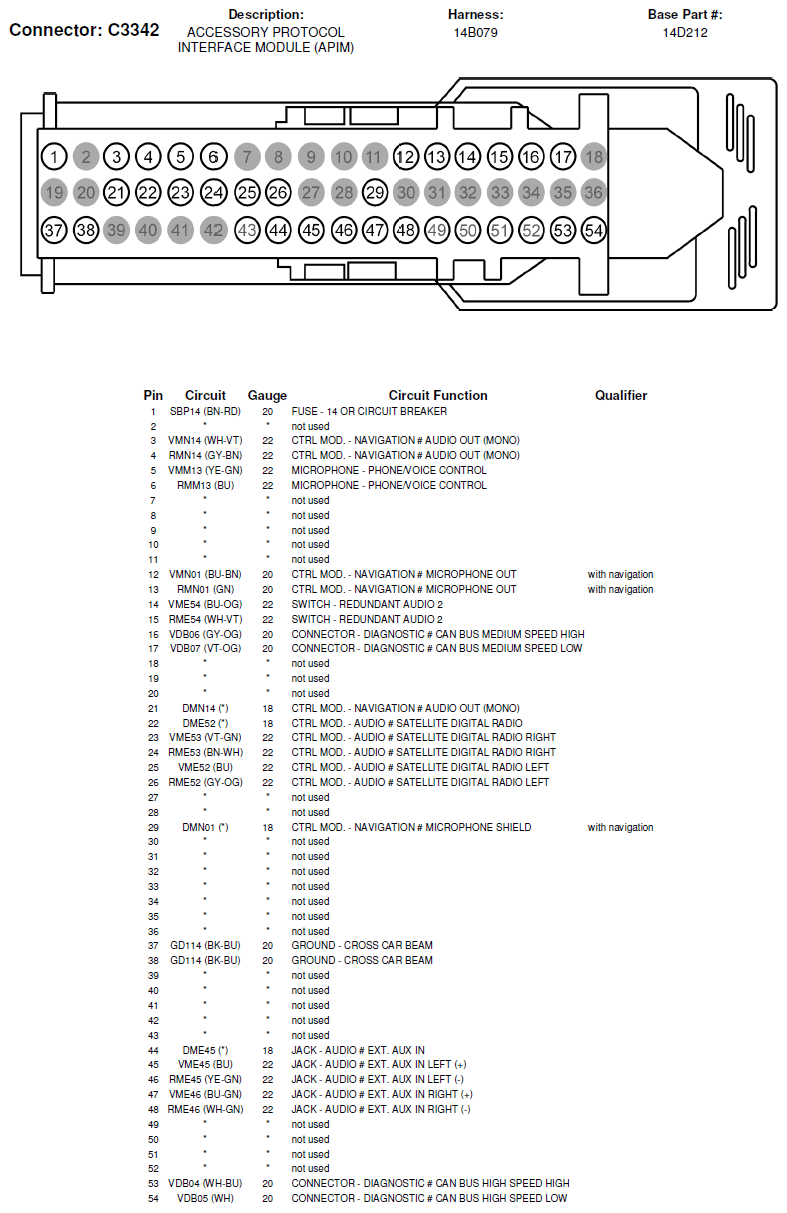

Fig 1: Accessory Protocol Interface Module Connector End View (C3342)
G06414025Courtesy of FORD MOTOR CO.
