Cruise Control Module Connector - C1582
Cruise Control Module Connector - C1582

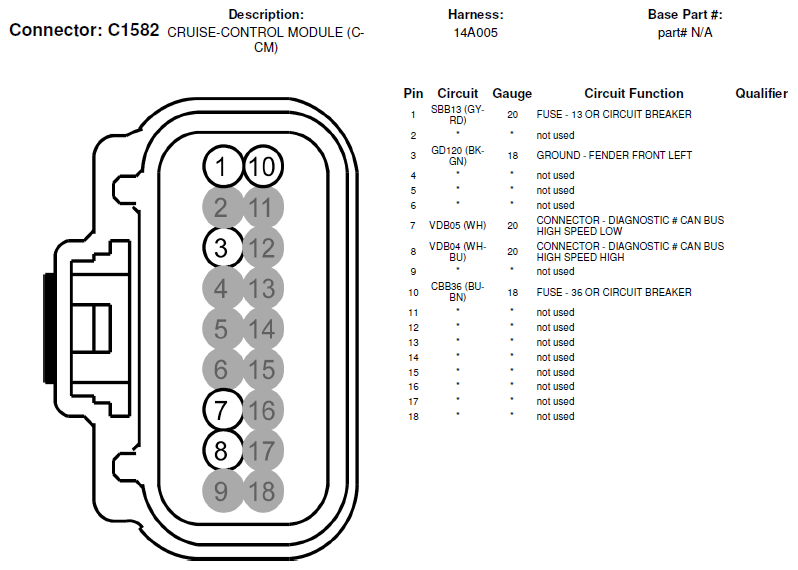

Fig 1: Cruise Control Module Connector End View (C1582)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
