Defrost Switch Connector - C241
Defrost Switch Connector - C241

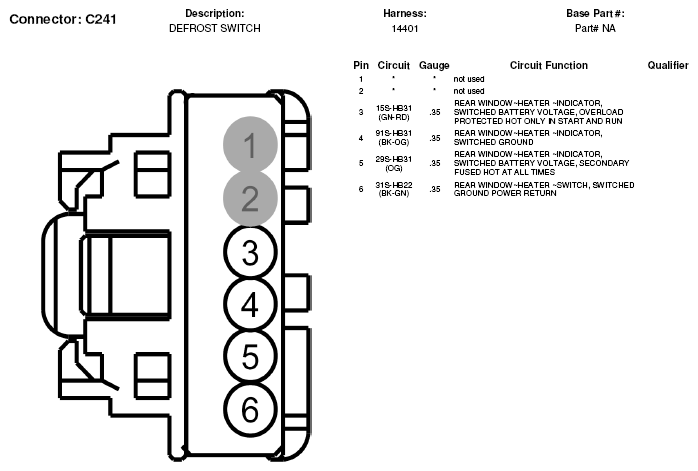

Fig 1: Defrost Switch Connector End View (C241)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
