Radio Remote Control Switch Connector - C2264

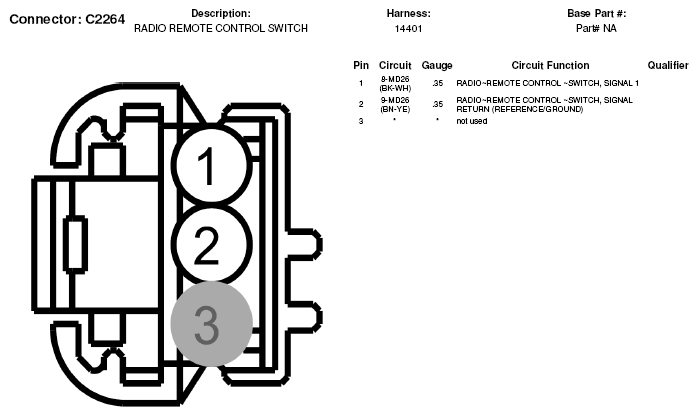

Fig 1: Radio Remote Control Switch Connector End View (C2264)
G06376446Courtesy of FORD MOTOR CO.
