Fire Suppression Manifold: Notes

NOTE: LH side shown in the illustration, RH side similar.

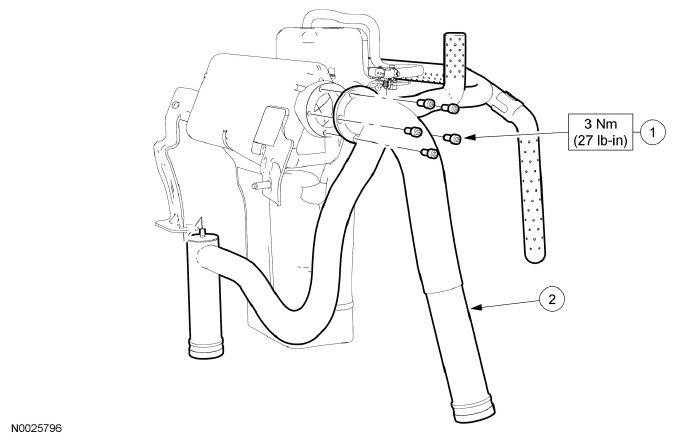

Fig 1: Fire Suppression Manifold Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Fire suppression manifold bolts (5 required) (part of 19H280/19H281)
2	19H280/19H281	Fire suppression manifold (RH/LH)
