Occupant Classification System Module Connector - C3043
Occupant Classification System Module Connector - C3043

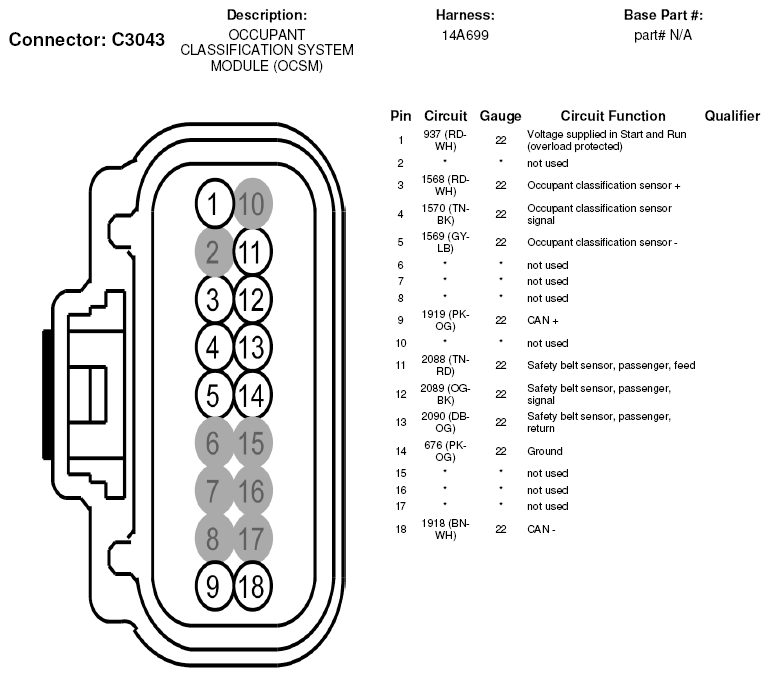

Fig 1: Occupant Classification System Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
