Removal And Installation: Removal

NOTE: Any PCM replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.

Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION SYSTEM article.
Release the clips and disconnect the 3 PCM electrical connectors.

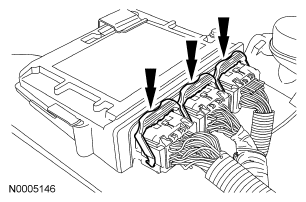

Fig 1: Locating PCM Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the bolt and the PCM.
