Wheel Speed Sensor - Front: Notes

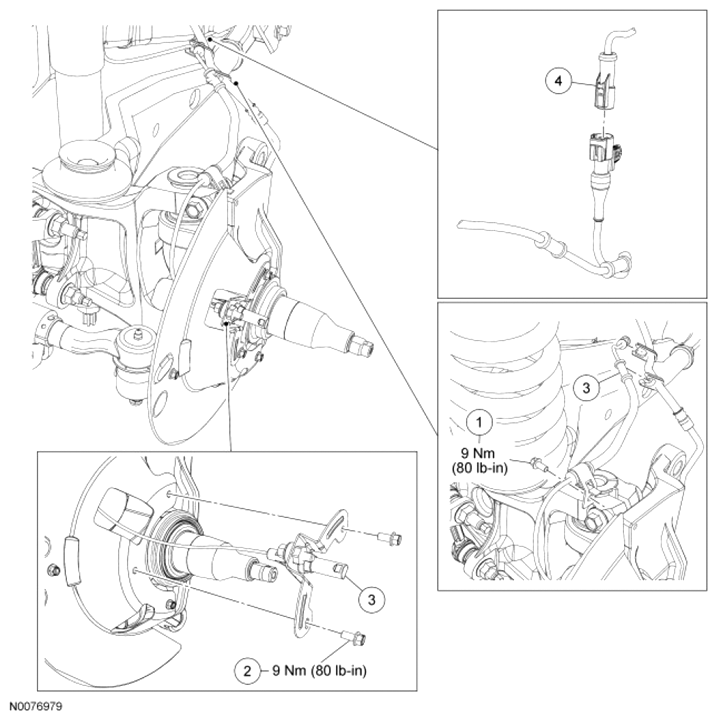

Fig 1: Exploded View Of Front Wheel Speed Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	N611172	Front wheel speed sensor harness retainer bolt
2	N611172	Front wheel speed sensor bolt
3	2C204	Front wheel speed sensor
4	-	Front wheel speed sensor harness connector (part of 12A581)
