Fuel Pump Control Module: Notes

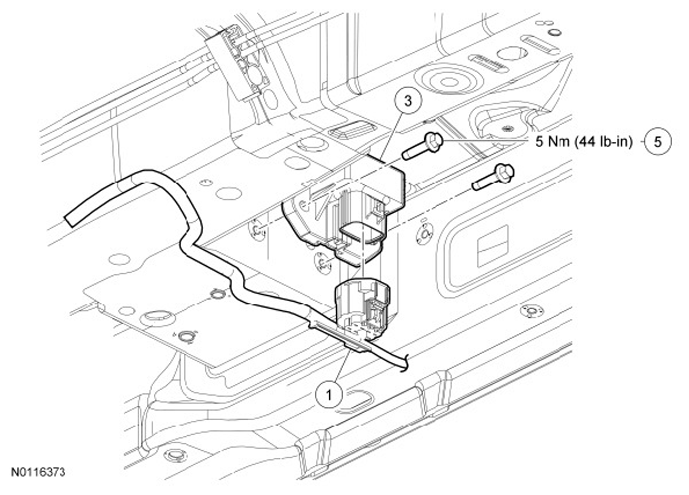

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Fuel Pump Control Module (FPCM) electrical connector (part of 14407)
2	W505256	FPCM  bolt (2 required)
3	9345	FPCM
