Front Control Interface Module Connector - C2402
Front Control Interface Module Connector - C2402

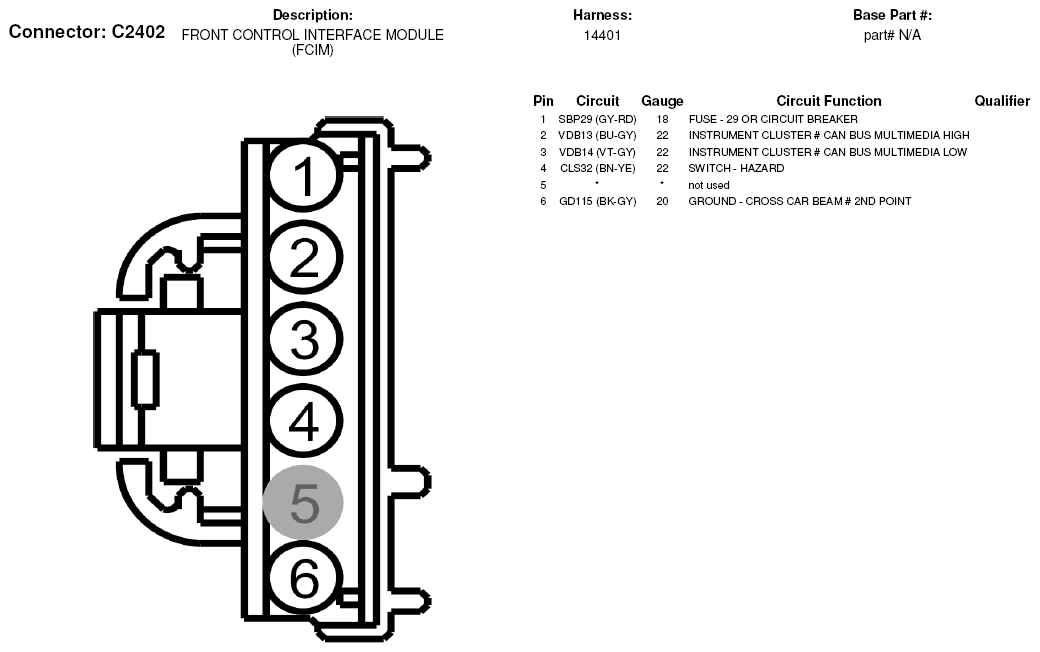

Fig 1: Front Control Interface Module Connector End View (C2402)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
